Product Overview

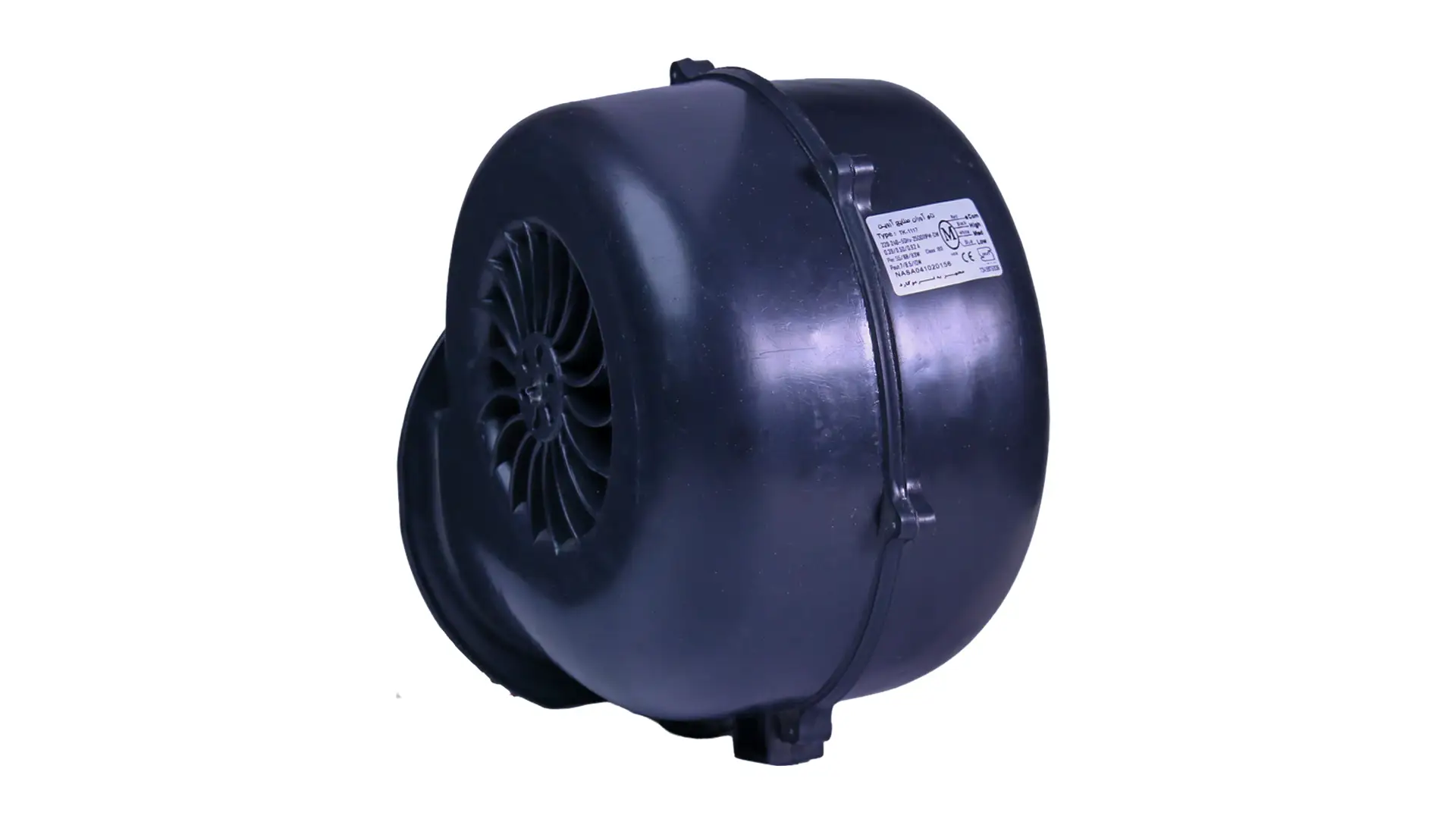

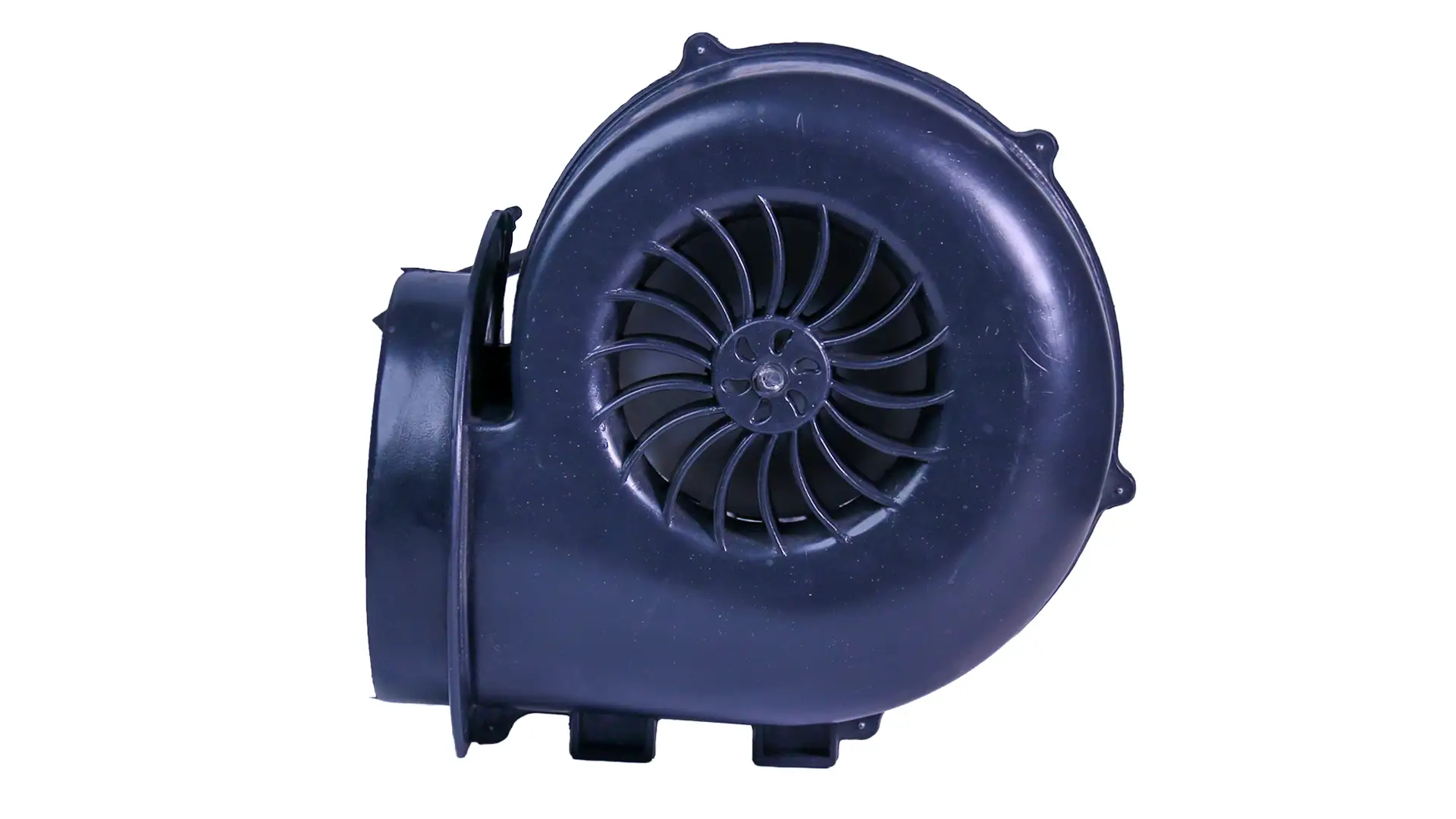

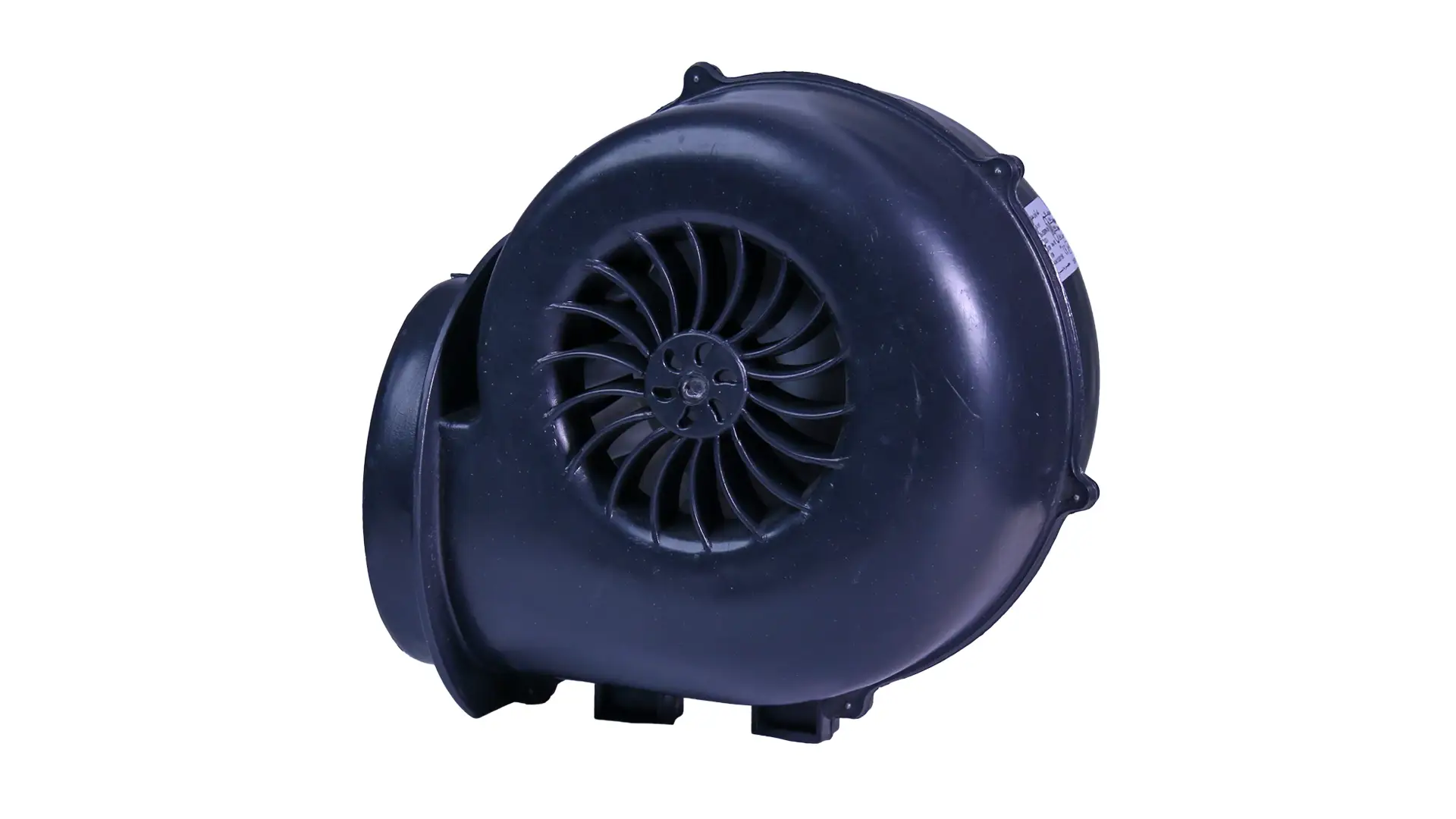

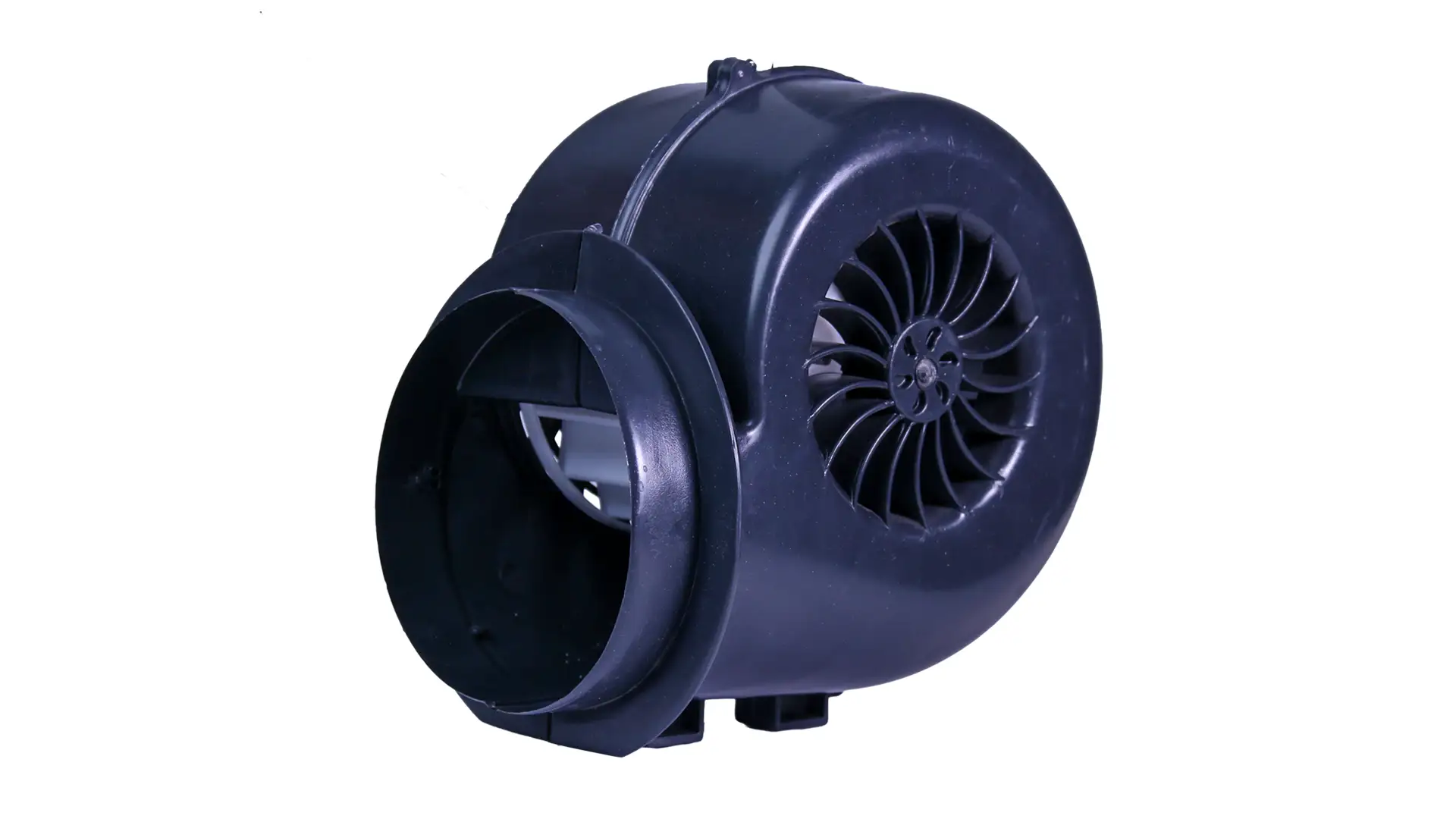

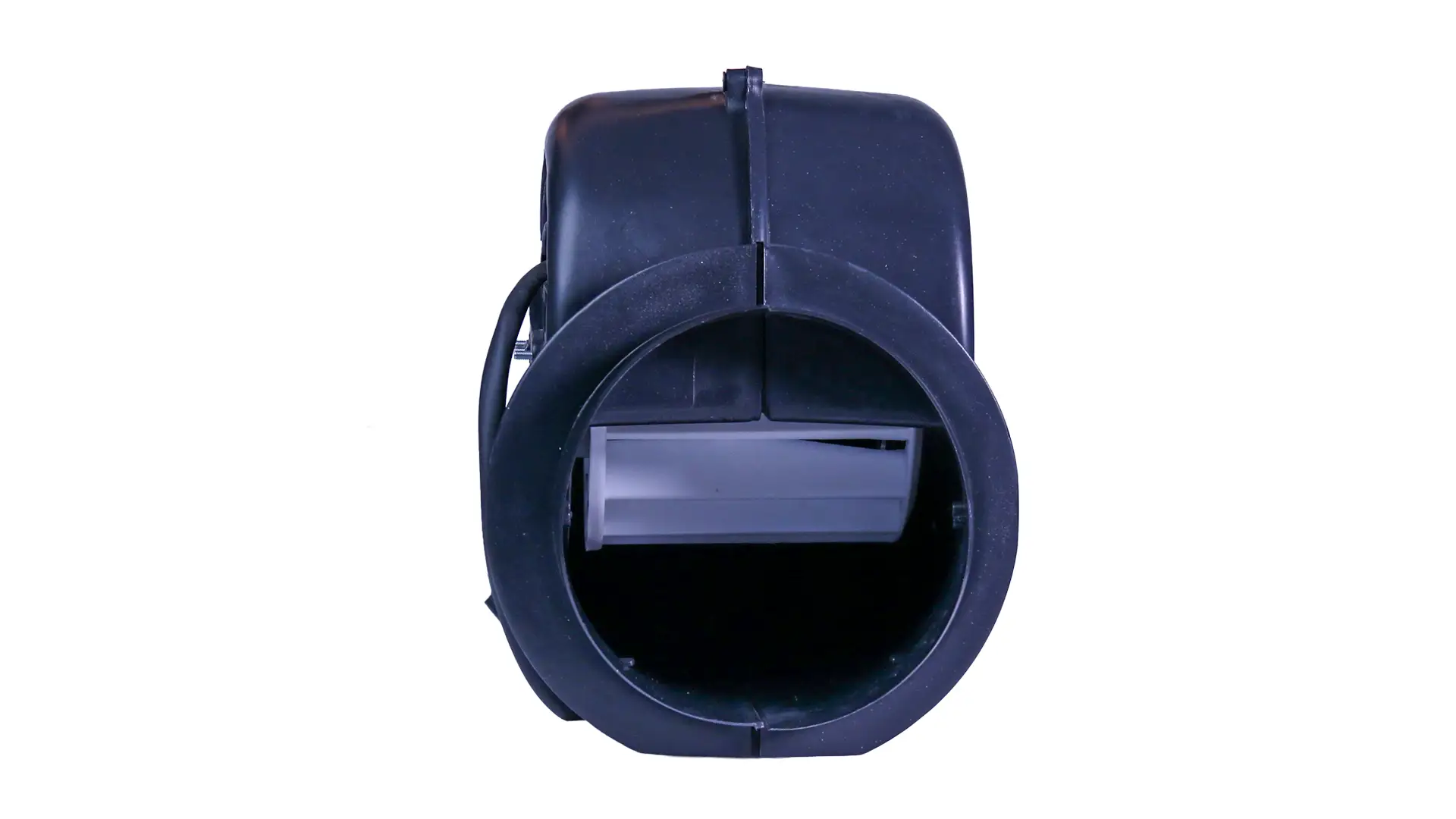

The K30 Compact Forward-Curved Range Hood Motor (Models 3111/3112) is a highly specialized, single-phase AC centrifugal blower engineered for space-restricted, concealed, and specialized kitchen ventilation systems. It features a precision-engineered single forward-curved impeller optimized to deliver high volumetric extraction within an exceptionally compact physical footprint. The motor is encased in an advanced fire-retardant plastic housing that strictly complies with international needle-flame standards and is structurally designed to support the direct installation of charcoal filters for recirculating setups. Fortified with heavy-duty Class 180 (Class H) winding insulation and an integrated thermal protector, this unit ensures uncompromising long-term reliability under severe continuous-duty thermal loads. With its capacitor-less architecture and 1-to-8 speed control matrix, it provides OEM manufacturers with an agile, high-performance core for modern built-in appliances.

Key Benefits

Optimized Spatial Footprint: The highly compact dimensions allow for seamless integration into concealed, slide-out, and custom architectural range hoods where internal chassis space is severely restricted.

Charcoal Filter Compatibility: Structurally engineered to accommodate charcoal filters, making it the definitive choice for ductless, recirculating ventilation configurations in high-density urban housing.

Extreme Thermodynamic Endurance (Class 180): Equipped with industrial-grade Class 180 insulation, providing maximum resistance to thermal degradation and guaranteeing a prolonged lifespan even within tightly enclosed, high-heat appliance casings.

High-Volume Forward Extraction: The single forward-curved impeller maximizes volumetric suction power within a constrained footprint, efficiently clearing airborne particulates and thermal exhaust.

Rigorous Fire Safety Standards: The motor casing is injection-molded from advanced fire-retardant plastic that successfully meets rigorous needle-flame testing standards, mitigating fire risks.

Technical Specifications

Product Features

Compact Forward-Curved Aerodynamics: Engineered with a highly efficient single forward-curved impeller. This specific aerodynamic geometry maximizes volumetric extraction power within a severely restricted physical footprint, making it the premier choice for sleek, concealed appliance architectures.

Charcoal Filter Integration: Uniquely designed with a structural framework that directly supports the installation of active charcoal filters. This capability transforms the motor into a complete recirculating engine, essential for ductless ventilation in modern urban apartments.

Class 180 Thermodynamic Protection: Fortified with industrial-grade Class 180 (Class H) winding insulation. Despite its enclosed and compact operating environment, this thermal management system allows the copper windings to operate safely under intense continuous-duty thermal loads up to 180°C without risk of degradation.

Needle-Flame Resistant Polymer Housing: The compact motor casing is injection-molded from an advanced, lightweight fire-retardant plastic that complies strictly with international needle-flame safety standards, eliminating the risk of combustion propagation within tight appliance enclosures.

Capacitor-Less OEM Architecture: Engineered without an internally mounted capacitor, this configuration provides a highly streamlined electrical interface, granting OEM electrical engineers the flexibility to integrate external capacitance directly onto proprietary appliance PCB switchboards.

Dynamic Variable Speed Control (1 to 8 Stages): Utilizing a highly adaptable single-phase AC configuration, the motor supports a versatile matrix from 1 to 8 distinct RPM speeds, allowing appliance manufacturers to map highly precise, energy-efficient extraction curves tailored to diverse concealed and slide-out models.

Integrated Thermal Overload Shield: Features an in-line thermal protector that continuously monitors internal coil temperatures. In the event of restricted airflow within a tight cabinet or severe ambient heat spikes, the circuit safely interrupts and automatically resets, preventing catastrophic thermal failure.

Applications

The exceptionally compact physical footprint and ductless recirculation capabilities of the K30 Compact Forward-Curved Range Hood Motor make it the definitive choice for:

Concealed & Built-In Range Hoods: Specifically engineered to fit seamlessly inside restricted cabinet spaces, hidden architectural canopies, and specialized slide-out ventilation units.

Ductless / Recirculating Kitchens: The native charcoal filter compatibility is mandatory for high-density urban apartment complexes and condominiums where external exhaust ductwork is structurally prohibited.

Space-Restricted Prosumer Appliances: Delivers high-volume forward-curved suction and Class 180 thermal durability for high-output cooking zones that lack the spatial footprint for traditional bulky metallic blowers.

Agile OEM Appliance Manufacturing: The lightweight polymer chassis and capacitor-less architecture allow for rapid assembly line integration into modern, weight-sensitive kitchen appliances.

Why Choose This Product

For international procurement managers and HVAC engineers, the K30 Compact Forward-Curved Range Hood Motor resolves the critical conflict between spatial limitations and thermodynamic longevity. Standard compact motors frequently suffer from rapid coil burnout due to poor heat dissipation in tight cabinet spaces. By fortifying this compact, high-airflow forward-curved motor with Class 180 insulation and an in-line thermal protector, Electro NASA guarantees that your concealed hoods will survive continuous heavy-duty operation. Furthermore, the built-in charcoal filter support allows OEMs to service the lucrative ductless urban market using a single, highly durable, and easily integrated component.

Why Choose This Manufacturer

Procuring specialized appliance components requires a manufacturing partner with absolute engineering control. Nam Avarane Sanaye Arvin Co. (Electro NASA) has been a primary industrial manufacturer of centrifugal blowers since 1999. By managing the entire injection molding, winding, and assembly lifecycle in-house, we eliminate the quality control inconsistencies associated with intermediary trading firms. Operating strictly under ISO 9001:2015 Quality Management Systems and producing CE-compliant components, we routinely export over 30% of our capacity. Electro NASA provides OEM buyers with documented export logistics expertise, dependable lead times, and the financial stability necessary to execute high-volume global supply agreements.

Product Comparison

Quality Assurance & Manufacturing

Enclosed Thermal Load Simulation: The Class 180 winding insulation is tested under simulated confined-space, continuous-duty scenarios to verify effective heat dissipation and uninterrupted long-term operation.

Needle-Flame Compliance Verification: Material batches for the polymer housing undergo strict fire-retardant testing to ensure total compliance with international combustion safety standards for enclosed cabinetry.

Recirculation Aerodynamic Testing: The forward-curved impeller is tested with actively installed charcoal filters to ensure the motor maintains efficient volumetric airflow despite the added static resistance.

Dielectric Withstand Testing (Hi-Pot): Ensuring the electrical architecture maintains absolute integrity and insulation safety under peak voltage stress.

Installation & Maintenance

Assembly Line Integration for OEMs: This motor is explicitly designed to streamline the manufacturing of concealed and space-restricted appliances. Its highly compact dimensions and lightweight polymer chassis significantly reduce operator fatigue during assembly and allow for effortless integration into tight built-in cabinet geometries. The structural framework natively supports active charcoal filters, allowing manufacturers to quickly adapt a single hood design for both ducted and ductless urban markets on the same assembly line.

Maintenance Profile in Enclosed Applications: Ventilation motors installed in tight, built-in cabinetry are highly susceptible to premature failure due to trapped thermal exhaust and poor heat dissipation. The K30 3111/3112 natively resolves this limitation. Fortified with extreme Class 180 thermal insulation and an auto-resetting in-line thermal protector, the motor operates safely under continuous high-heat loads without requiring physical maintenance. For end-users utilizing the recirculation feature, the motor’s housing is designed for quick, accessible charcoal filter replacements.

FAQ

Why utilize a forward-curved impeller in a compact, concealed range hood motor? In highly restricted physical spaces, generating sufficient suction volume is the primary engineering challenge. A forward-curved impeller is aerodynamically optimized to maximize volumetric air displacement relative to its physical size, ensuring even ultra-sleek, built-in range hoods provide powerful extraction comparable to much larger standard canopies.

How does the built-in charcoal filter compatibility benefit our appliance product line? Urban high-rise developments and condominiums frequently prohibit external exhaust ducting. By integrating structural support for charcoal filters directly onto the motor housing, you can easily offer your concealed hood models as “recirculating” or “ductless” units, instantly expanding your market reach into high-density housing sectors.

Is a plastic motor housing safe to install inside enclosed wooden cabinetry? Absolutely. The K30 3111/3112 casing is injection-molded from an advanced industrial polymer that strictly complies with rigorous international needle-flame testing standards, ensuring complete combustion safety and preventing fire propagation.

Why is Class 180 (Class H) insulation necessary for a compact built-in motor? Built-in and concealed range hoods trap more ambient heat because they are surrounded by cabinetry and lack open-air ventilation. Class 180 insulation allows the motor’s copper windings to safely operate at extreme temperatures up to 180°C, preventing the rapid thermal degradation that frequently plagues standard compact motors in enclosed spaces.

Can the 1-to-8 speed settings be mapped directly to our concealed touch panels? Yes. The motor utilizes a universally adaptable single-phase AC configuration. OEM electrical engineers can seamlessly map the distinct speed taps (from 1 up to 8 stages) to align precisely with proprietary capacitive touch interfaces or hidden slide-out mechanical switches.

What is the international supply capability for this specific compact component? Electro NASA operates a highly scalable manufacturing facility (established in 1999) under strict ISO 9001:2015 Quality Management Systems. We currently export over 30% of our production volume and are fully equipped to fulfill high-volume OEM supply agreements with strict adherence to CE standards and dual 50Hz/60Hz international grid readiness.

Trust & Export Procurement

Sourcing compact, space-restricted ventilation components through third-party trading brokers often exposes OEMs to high failure rates due to inferior thermal insulation and structural incompatibilities. By partnering directly with Nam Avarane Sanaye Arvin Co. (Electro NASA), you eliminate these logistical and engineering risks entirely.

As a primary industrial manufacturer, we maintain absolute operational control over our injection molding, winding, and assembly lines. We guarantee that the stringent Class 180 thermodynamic standards, needle-flame fire safety compliance, and compact aerodynamic balancing of the K30 motor remain consistent across your entire production volume.

Get in Touch

Request an OEM Quotation — Submit your projected annual volume and integration requirements to receive a comprehensive commercial pricing tier and production lead-time estimate.

Discuss Custom OEM Integration — Require specific PCB integration for the capacitor-less design or charcoal filter sizing? Consult directly with our technical sales engineers to optimize the K30 3111/3112 for your proprietary range hoods.

Request Technical Data & CAD Files — Accelerate your product development. Request dimensional drawings, compact aerodynamic performance curves, and electrical schematics for immediate engineering validation.

Apply for Regional Distributorship — Expand your B2B component portfolio with premium, Class 180 compact forward-curved blowers. Contact our export division to explore exclusive international distribution agreements.
